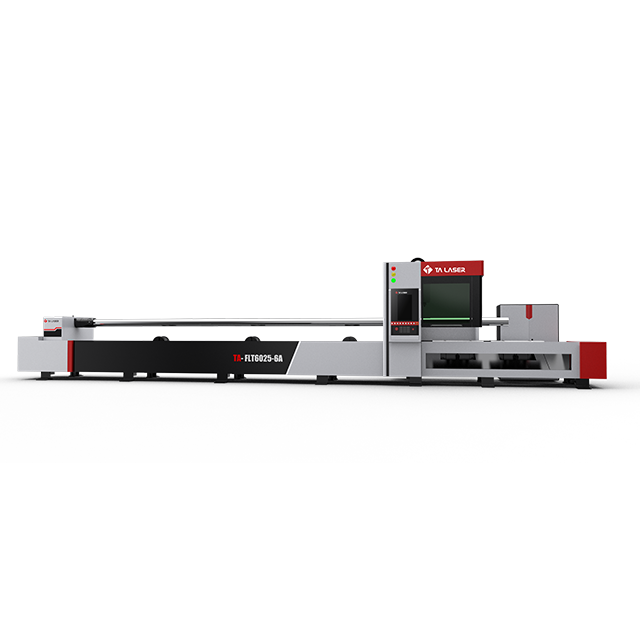

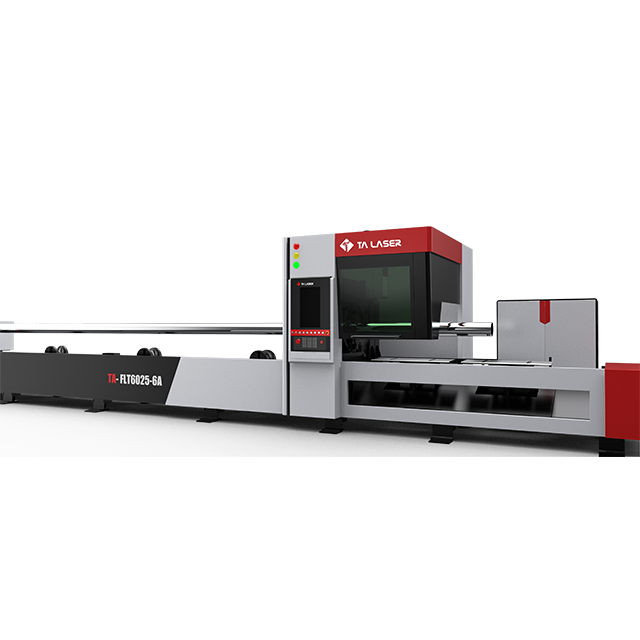

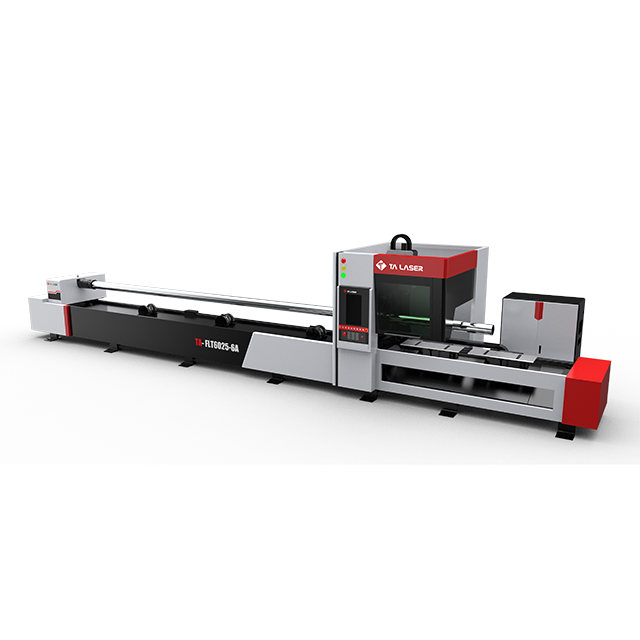

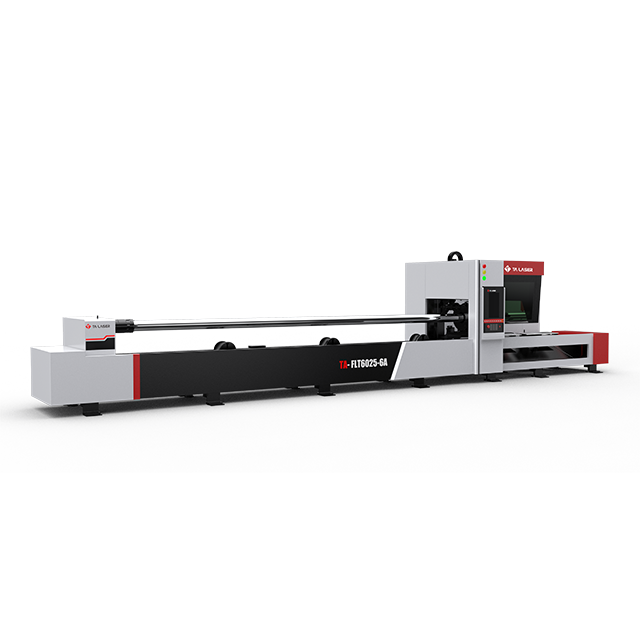

TA-FLT6025-6A Series
TA
| Tube Cutting Length | 3000mm/6000mm/9000mm |
| Z Axis Stroke | 240mm |
| Chuck Type | 220mm/320mm/360mm/520mm |
| Tube Section Shape | Round/Square/Rectangle/Oval/H Type/L Type/I Type |
| Laser Source | IPG/Raycus/Max |
| Laser Power | 1500W — 6000W |
| W Rotation Accuracy | ≦0.05mm |
| Positioning Accuracy | ±0.02mm/m |
| Repeatability Accuracy | ±0.01mm |
| Transmission | Single-drive Rack&Pinion |
| Total Power Consumption | <45KVA |
| Power Supply | 380V 50HZ/380V 60HZ |

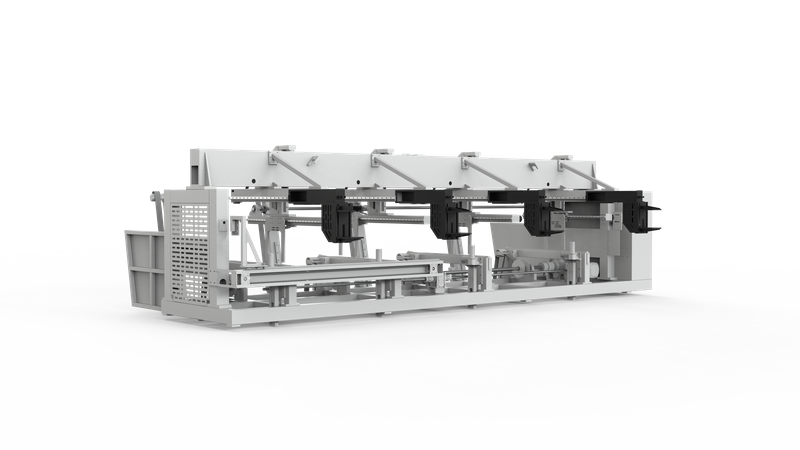

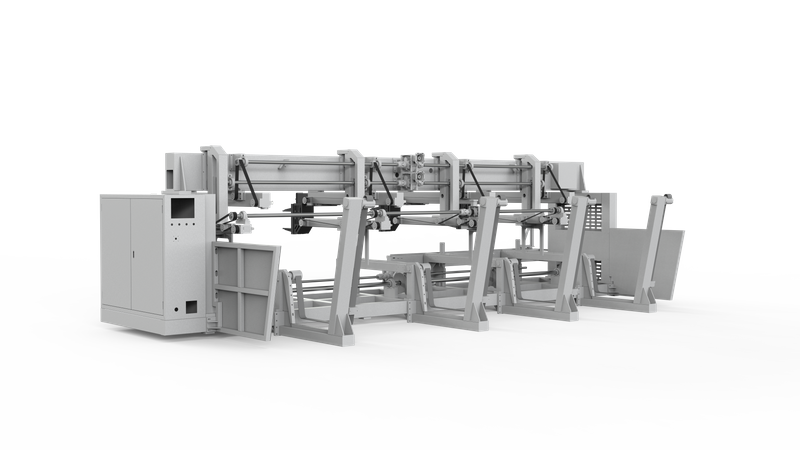

 Bus Control System Bus control system, front chuck can move 2500mm, ensure the long finishing part cutting accuracy. |  Double Supports It is equipped with follow-up support and roller support, which can effectively support the tube in the process of cutting and unloading, ensure the stability and accuracy of cutting. |  Less Waste Laser head can move to both side of the front chuck, to ensure the waste tube length less than 80mm. Auto loading system is optional. |
We adopt high rigid carbon square tube welding table, this structure can efficiently solve the issues of shaking and deformation during long time high speed working. It can support mass loading working materials more than 1000kgs. Through twice age process and annealing treatment, protect body will not deformation.
 |  |  |
 |  |  |
| Tube Cutting Length | 3000mm/6000mm/9000mm |
| Z Axis Stroke | 240mm |
| Chuck Type | 220mm/320mm/360mm/520mm |
| Tube Section Shape | Round/Square/Rectangle/Oval/H Type/L Type/I Type |
| Laser Source | IPG/Raycus/Max |
| Laser Power | 1500W — 6000W |
| W Rotation Accuracy | ≦0.05mm |
| Positioning Accuracy | ±0.02mm/m |
| Repeatability Accuracy | ±0.01mm |
| Transmission | Single-drive Rack&Pinion |
| Total Power Consumption | <45KVA |
| Power Supply | 380V 50HZ/380V 60HZ |
Bus Control System Bus control system, front chuck can move 2500mm, ensure the long finishing part cutting accuracy. | Double Supports It is equipped with follow-up support and roller support, which can effectively support the tube in the process of cutting and unloading, ensure the stability and accuracy of cutting. | Less Waste Laser head can move to both side of the front chuck, to ensure the waste tube length less than 80mm. Auto loading system is optional. |
We adopt high rigid carbon square tube welding table, this structure can efficiently solve the issues of shaking and deformation during long time high speed working. It can support mass loading working materials more than 1000kgs. Through twice age process and annealing treatment, protect body will not deformation.
| | |
| | |
