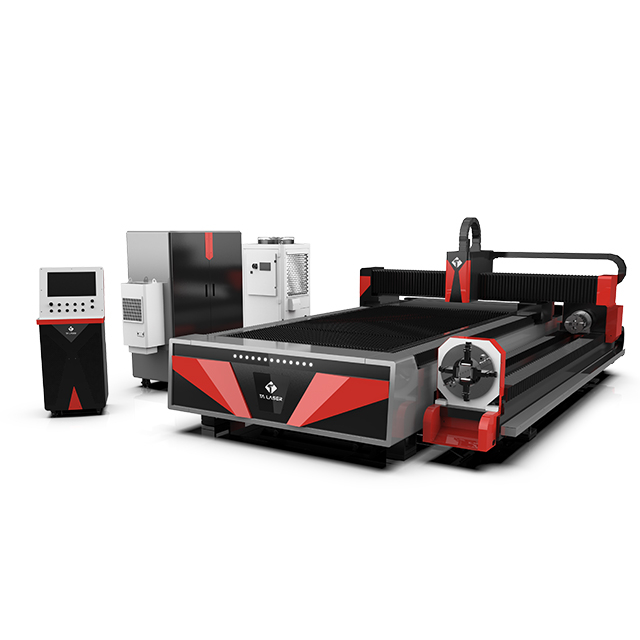

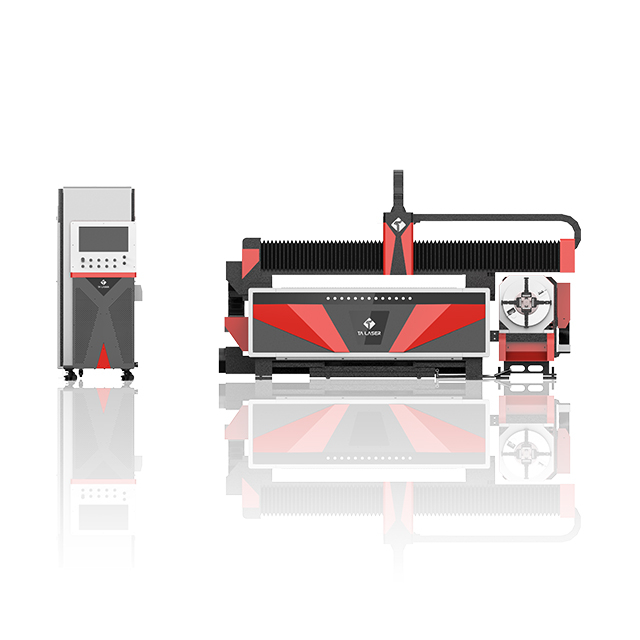

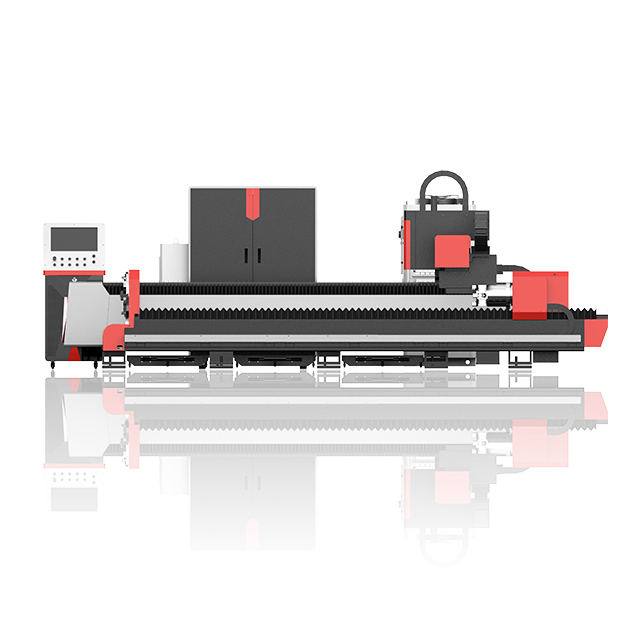

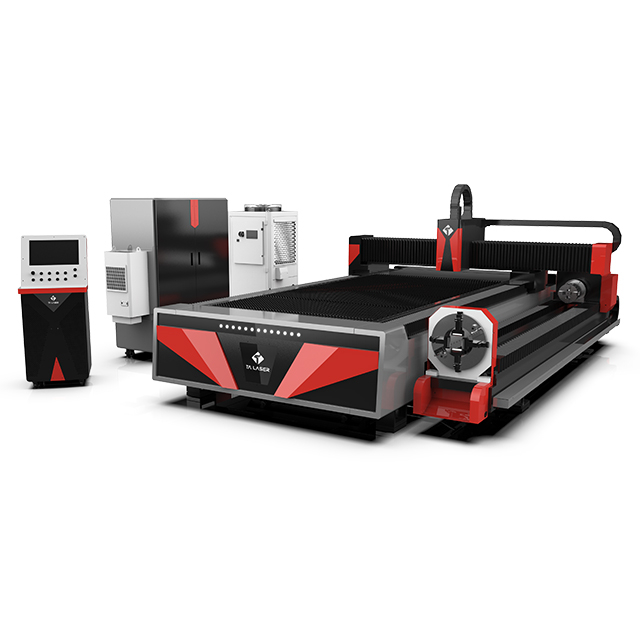

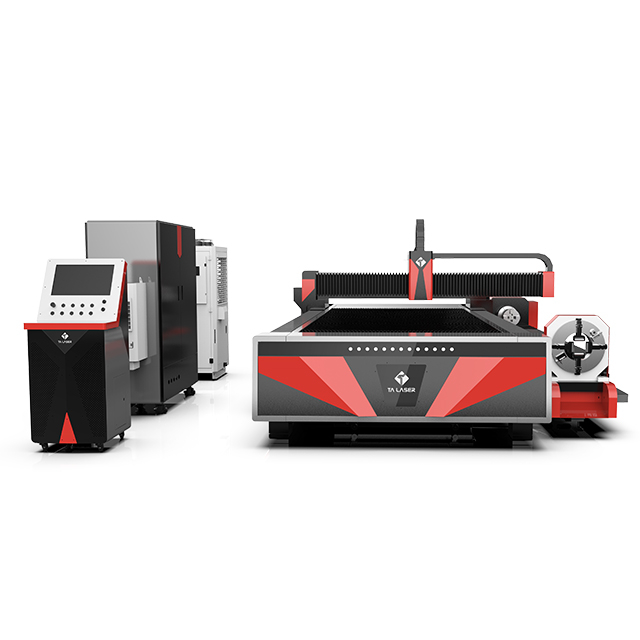

TA-FLS-T Series
TA
| Processing Area | 1000*1000mm — 6000*2000mm （customized size available） |
| Tube Diameter | 20-200mm(customized size available) |
| Laser Power | 300W — 8000W |
| Max Acceleration | 1.2G |
| Max Travelling Speed | 140m/min |
| XY Positioning Accuracy | ±0.02mm |
| Transmission | Dual-drive Rack&Pinion |
| Total power consumption | <35KVA |
| Power Supply | 380V 50HZ/380V 60HZ |
 Sheet Tube cutting Integrate One machine for both cutting sheet and tube , rich in equipment functions. Solve the cutting scheme of many kinds of workpiece. The system automatically identifies the mark coordinates. Safe and reliable switching sheet and tube cutting function. |  Wifi remote intelligent assistance Real-time feedback, Provide real-time fault analysis and trouble shooting. Make sure your machine continuous working. |  A new generation of cutting collision avoidance system The perfect fit between the laser head and the software, the high capacitance is sensitive. In the cutting process, there are obstacle recognition and automatic avoidance functions. Reduce the risk of laser head collision and achieve zero collision cutting. |
We adopt high rigid carbon square tube welding table ,this structure can efficiently solve the issues of shaking and deformation during long time high speed working. It can support mass loading working materials more than 1000Kg . Through twice age process and annealing treatment, protect body will not deformation.
 |  |  |
 |  |  |
 |  |  |
| Processing Area | 1000*1000mm — 6000*2000mm （customized size available） |
| Tube Diameter | 20-200mm(customized size available) |
| Laser Power | 300W — 8000W |
| Max Acceleration | 1.2G |
| Max Travelling Speed | 140m/min |
| XY Positioning Accuracy | ±0.02mm |
| Transmission | Dual-drive Rack&Pinion |
| Total power consumption | <35KVA |
| Power Supply | 380V 50HZ/380V 60HZ |
Sheet Tube cutting Integrate One machine for both cutting sheet and tube , rich in equipment functions. Solve the cutting scheme of many kinds of workpiece. The system automatically identifies the mark coordinates. Safe and reliable switching sheet and tube cutting function. | Wifi remote intelligent assistance Real-time feedback, Provide real-time fault analysis and trouble shooting. Make sure your machine continuous working. | A new generation of cutting collision avoidance system The perfect fit between the laser head and the software, the high capacitance is sensitive. In the cutting process, there are obstacle recognition and automatic avoidance functions. Reduce the risk of laser head collision and achieve zero collision cutting. |
We adopt high rigid carbon square tube welding table ,this structure can efficiently solve the issues of shaking and deformation during long time high speed working. It can support mass loading working materials more than 1000Kg . Through twice age process and annealing treatment, protect body will not deformation.
| | |
| | |
| | |
