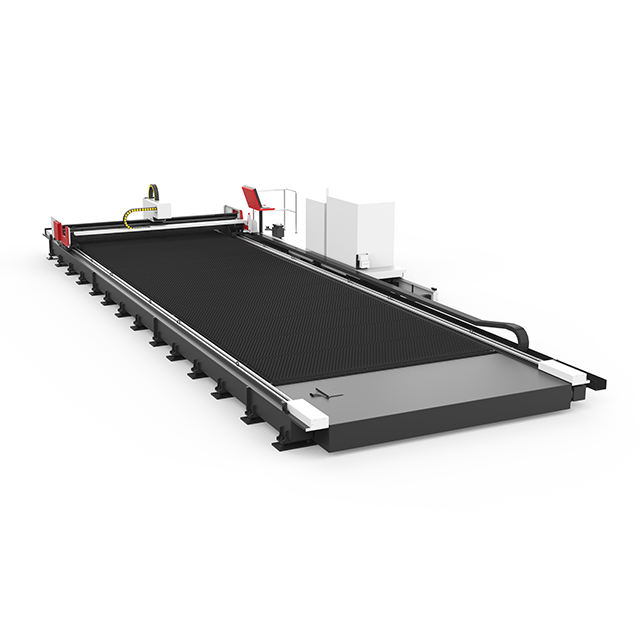

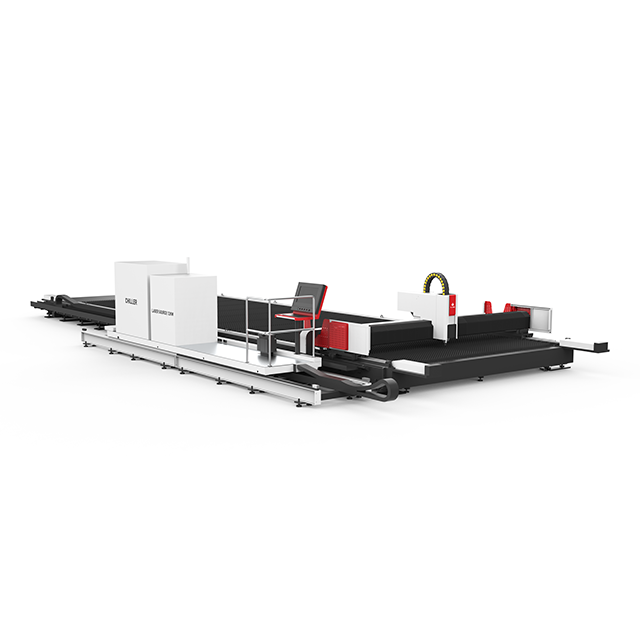

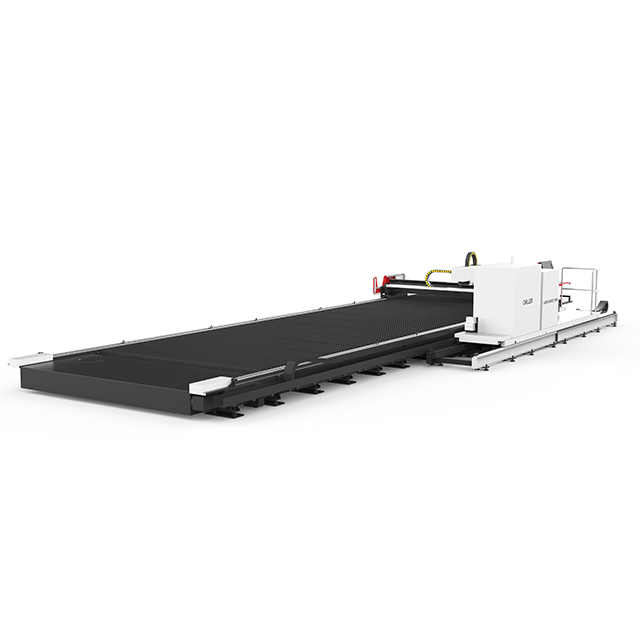

TA-FLG Series
TA
| Processing Area | 12000*2000mm, 12000*2500mm, 12000*3000mm （customized size available） |
| Laser Source | IPG/Raycus/Max |
| Laser Power | 6000W — 30000W |
| Max Acceleration | 0.8G |
| Max Travelling Speed | 80m/min |
| Positioning Accuracy | ±0.03mm/m |
| Repeatability Accuracy | ±0.08mm |
| Transmission | Dual-drive Rack&Pinion |
| Total power consumption | <140KVA |
| Power Supply | 380V 50HZ/380V 60HZ |
 Automatic lubrication system Provide lubricating oil for the equipment at fixed time and quantity. Ensure the normal high-speed operation of equipment. Ensure the accuracy, extend the service life of the transmission mechanism. |  Gantry Mahcine Structure Gantry machine externable structure, modular working table design.Precision machanical, hardened, heavy duty drive rack on both the long and the cross travel direction, ensure high accuracy and long service life. Low cutting taper, little kerf, high material utilization. Beval cutting function is optional. |  A new generation of cutting collision avoidance system The perfect fit between the laser head and the software, the high capacitance is sensitive. In the cutting process, there are obstacle recognition and automatic avoidance functions. Reduce the risk of laser head collision and achieve zero collision cutting. |
We adopt high rigid carbon square tube welding table ,this structure can efficiently solve the issues of shaking and deformation during long time high speed working. It can support mass loading working materials more than 1000Kg . Through twice age process and annealing treatment, protect body will not deformation.
 |  |
 |  |  |
 |  |  |
| Processing Area | 12000*2000mm, 12000*2500mm, 12000*3000mm （customized size available） |
| Laser Source | IPG/Raycus/Max |
| Laser Power | 6000W — 30000W |
| Max Acceleration | 0.8G |
| Max Travelling Speed | 80m/min |
| Positioning Accuracy | ±0.03mm/m |
| Repeatability Accuracy | ±0.08mm |
| Transmission | Dual-drive Rack&Pinion |
| Total power consumption | <140KVA |
| Power Supply | 380V 50HZ/380V 60HZ |
Automatic lubrication system Provide lubricating oil for the equipment at fixed time and quantity. Ensure the normal high-speed operation of equipment. Ensure the accuracy, extend the service life of the transmission mechanism. | Gantry Mahcine Structure Gantry machine externable structure, modular working table design.Precision machanical, hardened, heavy duty drive rack on both the long and the cross travel direction, ensure high accuracy and long service life. Low cutting taper, little kerf, high material utilization. Beval cutting function is optional. | A new generation of cutting collision avoidance system The perfect fit between the laser head and the software, the high capacitance is sensitive. In the cutting process, there are obstacle recognition and automatic avoidance functions. Reduce the risk of laser head collision and achieve zero collision cutting. |
We adopt high rigid carbon square tube welding table ,this structure can efficiently solve the issues of shaking and deformation during long time high speed working. It can support mass loading working materials more than 1000Kg . Through twice age process and annealing treatment, protect body will not deformation.
| |
| | |
| | |
