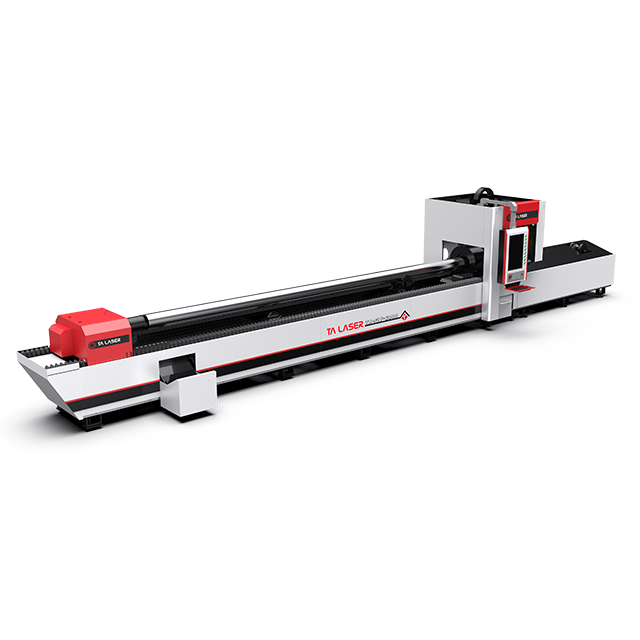

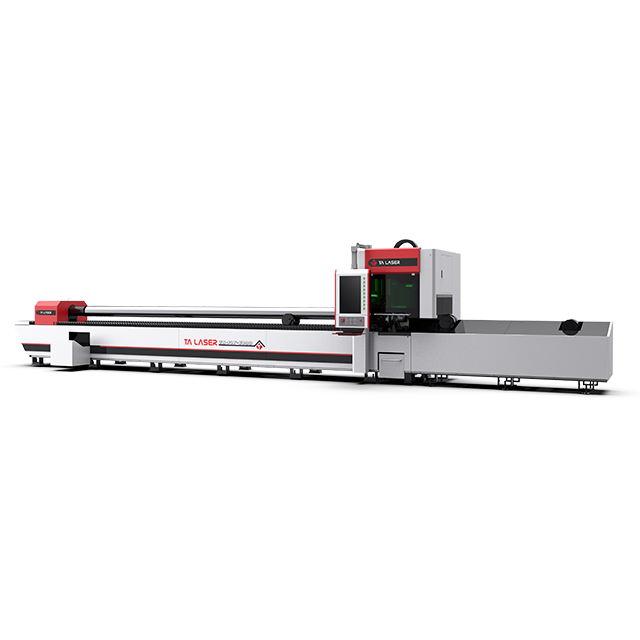

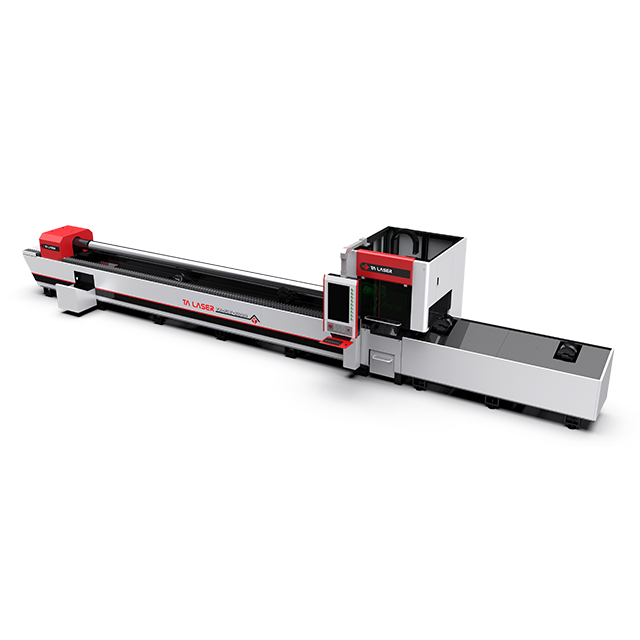

TA-FLT6000 Series
TA
| Tube Cutting Length | 3000mm/6000mm/9000mm |
| Z Axis Stroke | 240mm |
| Chuck Type | 220mm/320mm/360mm/520mm |
| Tube Section Shape | Round/Square/Rectangle/Oval/H Type/L Type/I Type |
| Laser Type | Fiber Laser Source |
| Laser Power | 1500W — 6000W |
| Laser Source | IPG/Raycus/Max |
| W Rotation Accuracy | ≦0.05mm |
| Positioning Accuracy | ±0.02mm/m |
| Repeatability Accuary | ±0.01mm |
| Transimission | Single-drive Rack&Pinion |
| Total Power Consumption | <45KVA |
| Power Supply | 380V 50HZ/380V 60HZ |
 Strong Working Table Thick steel tube and plate welding, high stability, high temperature annealing treatment, less heat absorption, deformation prevention. |  Intelligent Support System It employs intelligent tube support design which can solve the deformation problems in the process of long tube cutting. |  Unloading System Simple unloading system with two roller supports, high efficiency, super convenient. Auto-loading system is optional. |

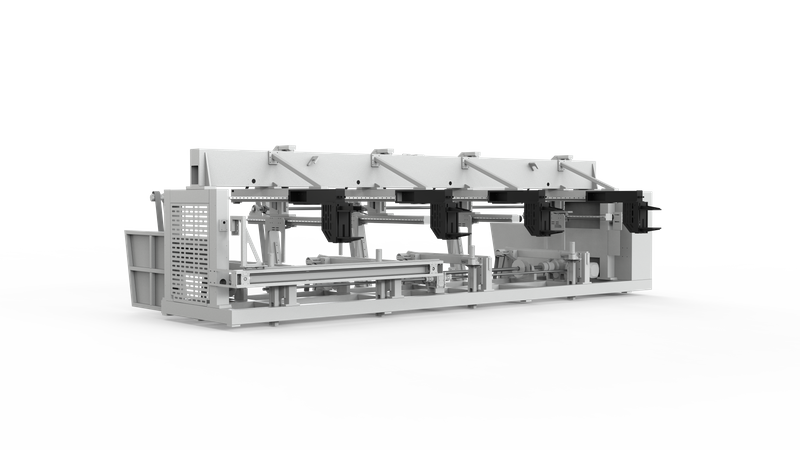

We adopt high rigid carbon square tube welding table ,this structure can efficiently solve the issues of shaking and deformation during long time high speed working. It can support mass loading working materials more than 1000Kg . Through twice age process and annealing treatment, protect body will not deformation.
 |  |  |
 |  |  |
| Tube Cutting Length | 3000mm/6000mm/9000mm |
| Z Axis Stroke | 240mm |
| Chuck Type | 220mm/320mm/360mm/520mm |
| Tube Section Shape | Round/Square/Rectangle/Oval/H Type/L Type/I Type |
| Laser Type | Fiber Laser Source |
| Laser Power | 1500W — 6000W |
| Laser Source | IPG/Raycus/Max |
| W Rotation Accuracy | ≦0.05mm |
| Positioning Accuracy | ±0.02mm/m |
| Repeatability Accuary | ±0.01mm |
| Transimission | Single-drive Rack&Pinion |
| Total Power Consumption | <45KVA |
| Power Supply | 380V 50HZ/380V 60HZ |
Strong Working Table Thick steel tube and plate welding, high stability, high temperature annealing treatment, less heat absorption, deformation prevention. | Intelligent Support System It employs intelligent tube support design which can solve the deformation problems in the process of long tube cutting. | Unloading System Simple unloading system with two roller supports, high efficiency, super convenient. Auto-loading system is optional. |
We adopt high rigid carbon square tube welding table ,this structure can efficiently solve the issues of shaking and deformation during long time high speed working. It can support mass loading working materials more than 1000Kg . Through twice age process and annealing treatment, protect body will not deformation.
| | |
| | |
