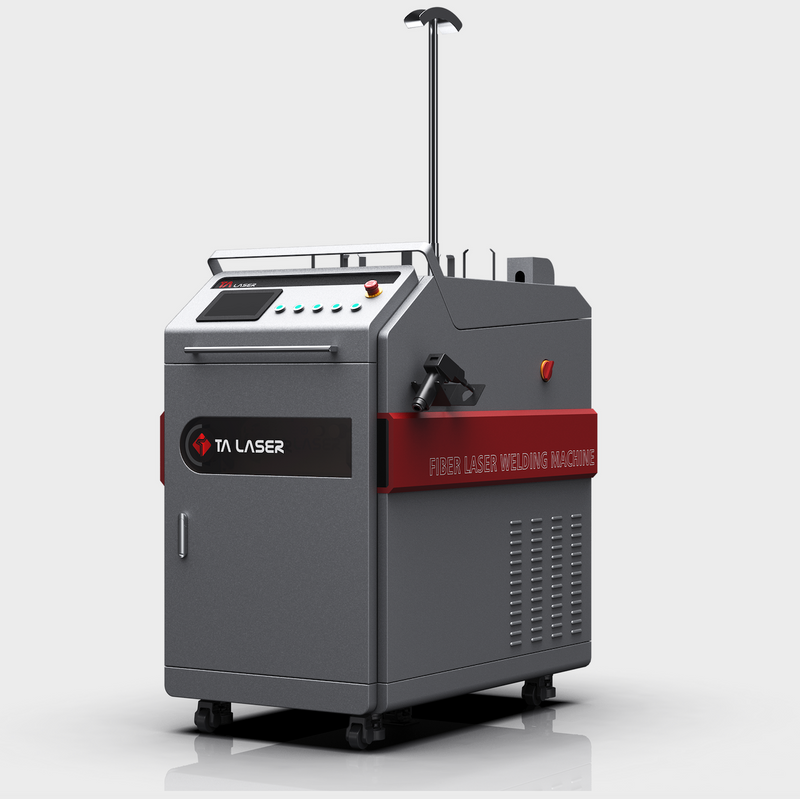

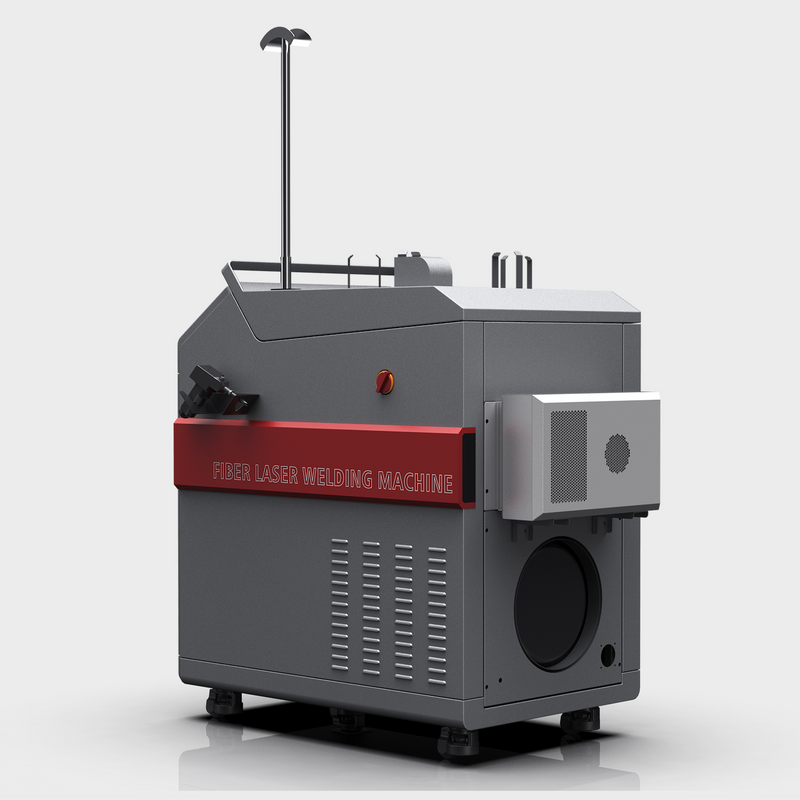

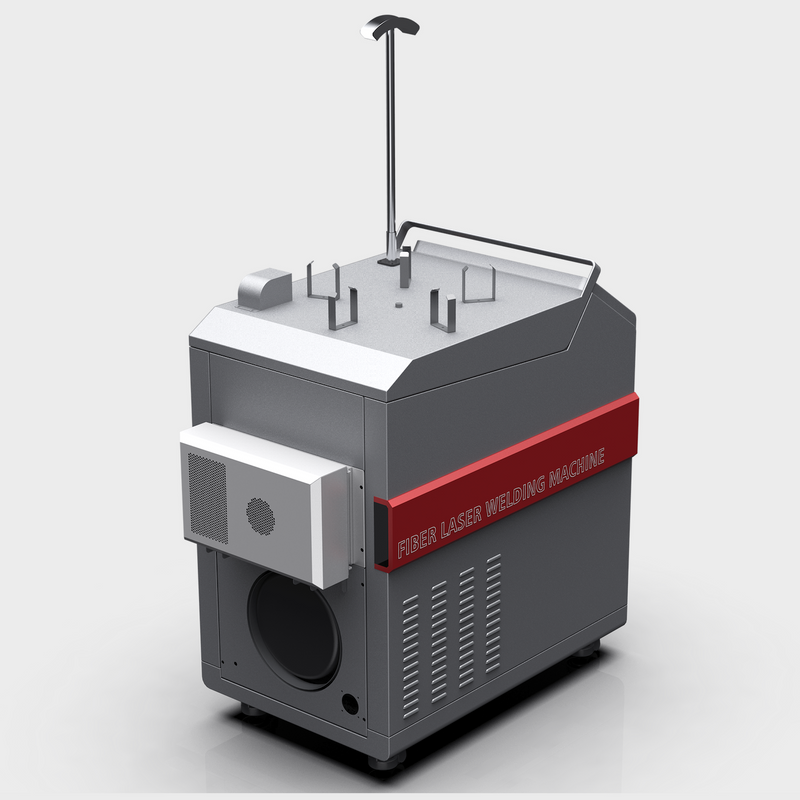

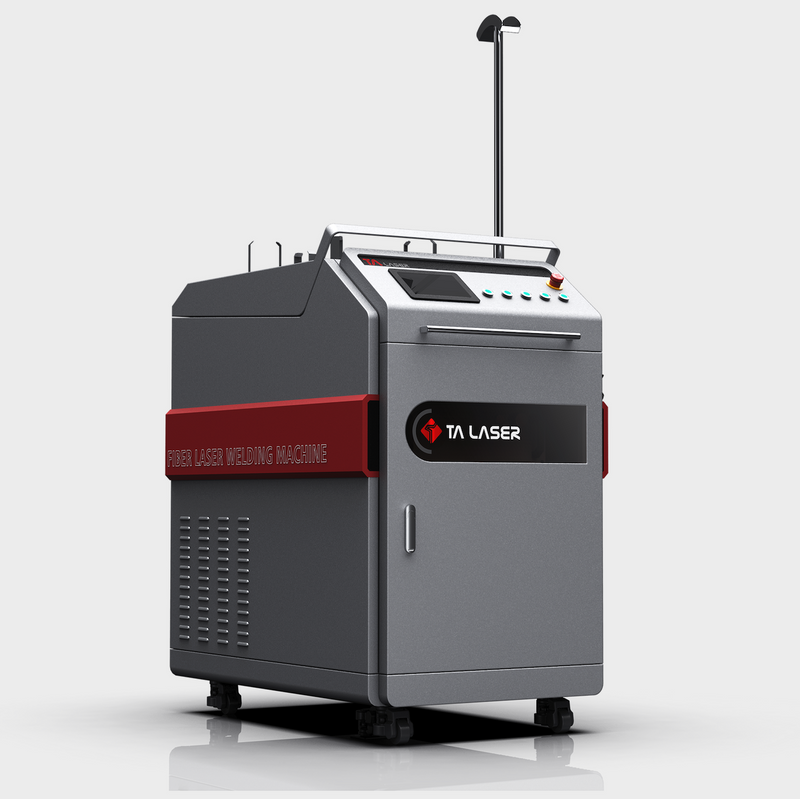

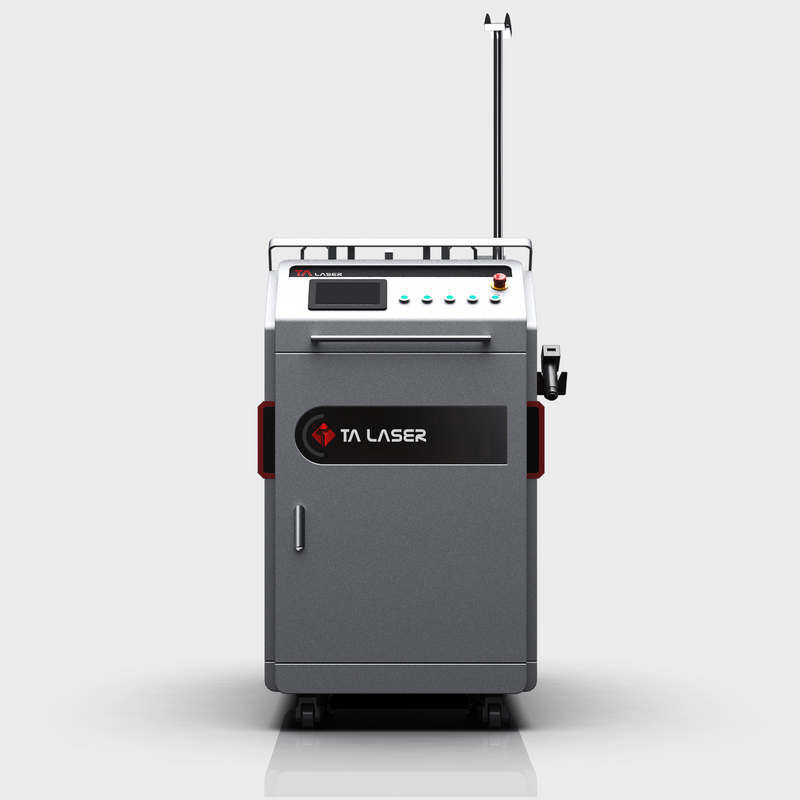

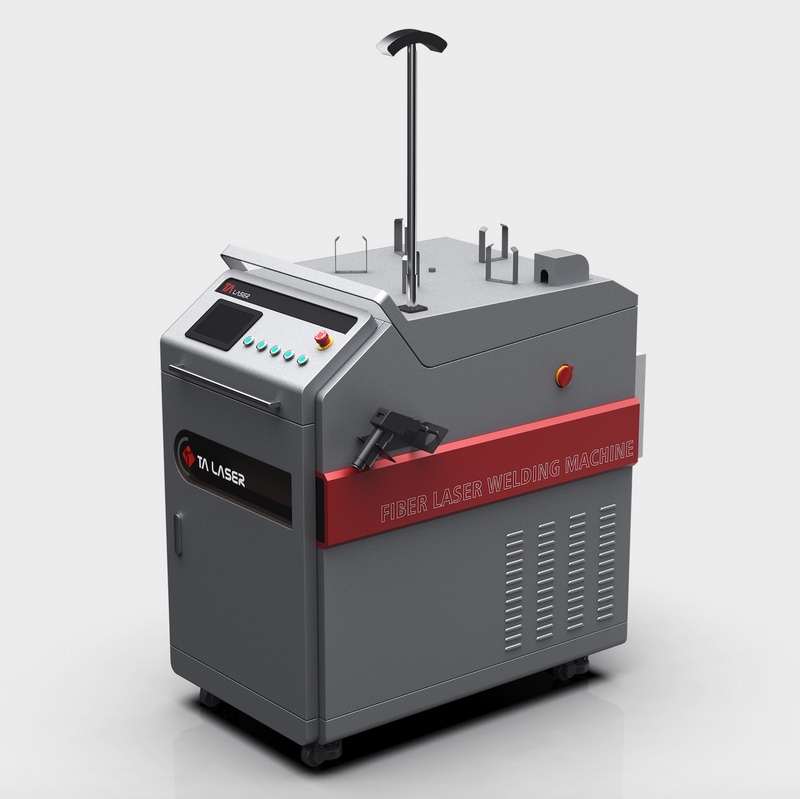

TA-FLW Series
TA
 Easy Operation Combined with automatic control and computer technology, it is easy to realize automation. Compact size design, easy to move, easy to install and control. |  Small Thermal Deformation Welding routes are solid and smooth under mode of continuous laser. Little deformation and tiny bulge less or no need polishing, saving labor and time costs. |  Low Cost More efficient and lower maintenance costs. Welding gas pressure monitor system, air conditoner system ensure long life using time. |
Combined with automatic control and computer technology, it is easy to realize automation. Advanced product structures and materials can be improved due to advanced processing methods. It can process complex parts and small parts, and can also process in vacuum with no noise, no pollution to the environment. The fiber-optic welding head adopts water-cooling method to ensure the stability of laser processing for a long time.
| Specification | Model | |||
| Laser Mode | Six Different Modes | |||
| Laser Power | 1000W-2000W | |||
| Laser Source | Raycus/MAX | |||
| Power Adjusting Range | 10-100% | |||
| Laser Spot Range | 0.2mm-5mm | |||
| Emission Wavelength (nm) | 1080±5 | |||
| Laser Frequency Range | 50-20000Hz/50-5000Hz | |||
| Laser Wobble Frequency Range | 20-200HZ | |||
| Fiber Length | 5m | |||
| Cooling Method | Water Cooling | |||
| Machine Dimensions | 1000MM*650MM*1250MM | |||
| Welding Materail | Carbon Steel, Stainless Steel, Aluminum | |||
| Welding Penetration | ≦5MM | |||
| Power Supply | AC 220V±10%/ AC 380V±10%, 50/60Hz | |||
 |  |  |
