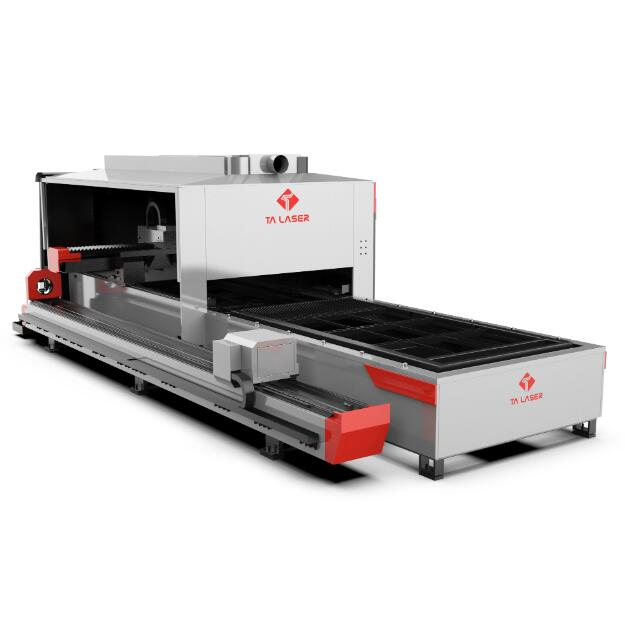

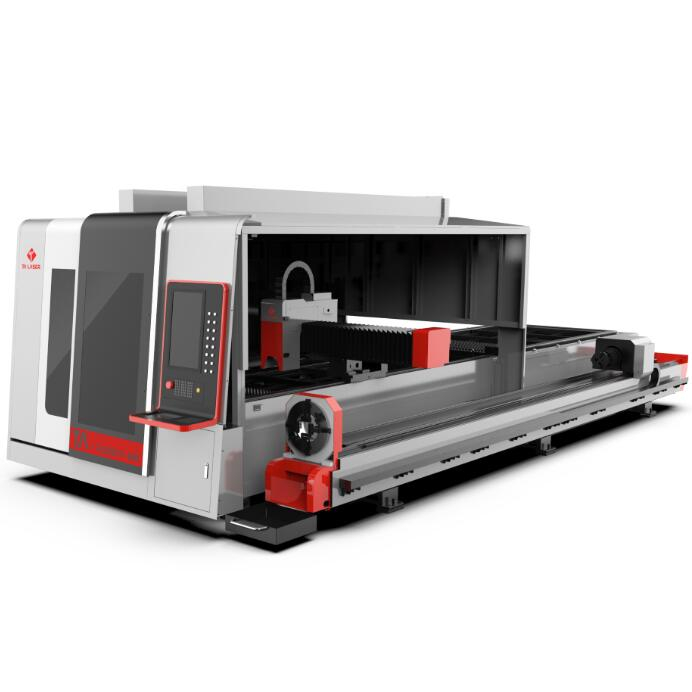

TA-FLX-HP Series
TA
| Processing Area | 1000*1000mm — 6000*2000mm （customized size available） |
| Tube Diameter | 20-200mm(customized size available) |
| Laser Power | 300W — 8000W |
| Max Acceleration | 1.5G |
| Max Travelling Speed | 140m/min |
| XY Positioning Accuracy | ±0.02mm |
| Transmission | Dual-drive Rack&Pinion |
| Total power consumption | <35KVA |
| Power Supply | 380V 50HZ/380V 60HZ |
 Double chain fast switching system Double chain drive exchange system with high precision and stability. Greatly improved the efficiency of the worktable exchange drive, compared to the traditional single chain drive mode. All aspects of performance have been significantly improved, the fastest implementation of 10S platform exchange. |  Real-time gas pressure monitoring system Real-time gas pressure monitoring during cutting, When the gas pressure is lower than the set pressure, laser cutting software alarm and machine stop. After return to set pressure, machine continue working. |  A new generation of cutting collision avoidance system The perfect fit between the laser head and the software, the high capacitance is sensitive. In the cutting process, there are obstacle recognition and automatic avoidance functions. Reduce the risk of laser head collision and achieve zero collision cutting. |
We adopt high rigid carbon square tube welding table ,this structure can efficiently solve the issues of shaking and deformation during long time high speed working. It can support mass loading working materials more than 1000Kg . Through twice age process and annealing treatment, protect body will not deformation.
 |  |  |
 |  |  |
 |  |  |
