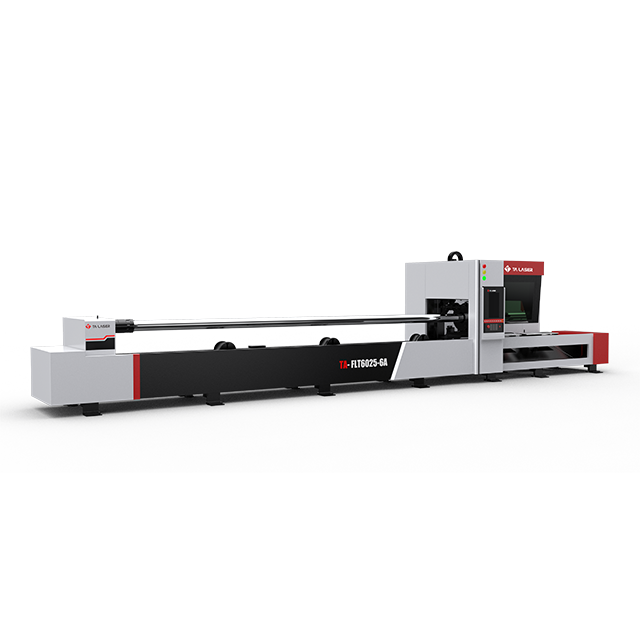

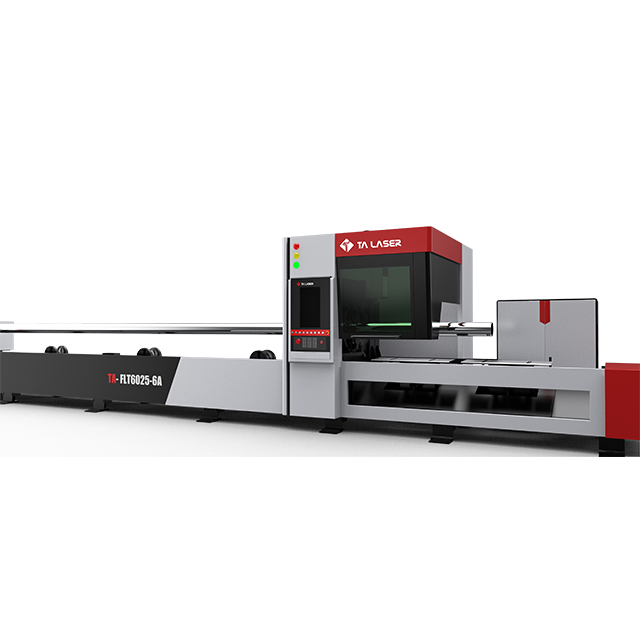

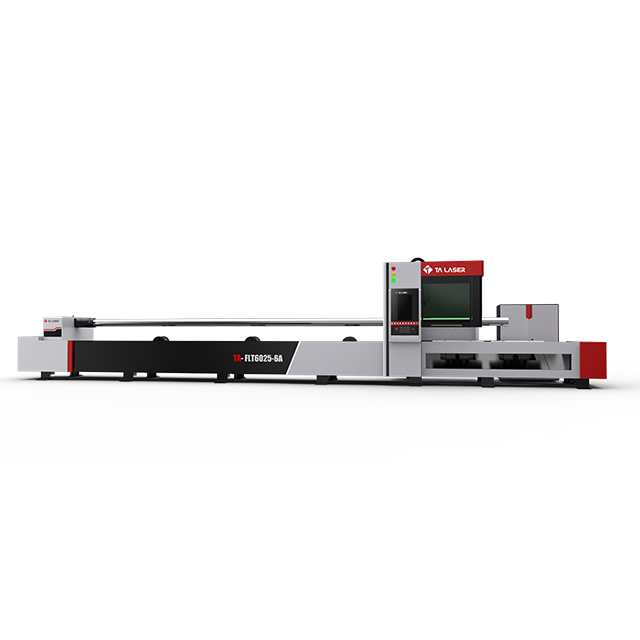

Six-axis Tube Laser Cutting Machine

Availability:
  • TA-FLT6025-6A Series

  • TA

Tube Cutting Length 3000mm/6000mm/9000mm
Z Axis Stroke 240mm
Chuck Type 220mm/320mm/360mm/520mm
Tube Section Shape Round/Square/Rectangle/Oval/H Type/L Type/I Type
Laser Source IPG/Raycus/Max
Laser Power  1500W — 6000W
W Rotation Accuracy
≦0.05mm
Positioning Accuracy ±0.02mm/m
Repeatability Accuracy ±0.01mm
Transmission Single-drive Rack&Pinion
Total Power Consumption <45KVA
Power Supply 380V 50HZ/380V 60HZ


Our Advantages

Bus Control System

Bus control system, front chuck can move 2500mm, ensure the long finishing part cutting accuracy.


Double Supports

It is equipped with follow-up support and roller support, which can effectively support the tube in the process of cutting and unloading, ensure the stability and accuracy of cutting.


Less Waste

Laser head can move to both side of the front chuck, to ensure the waste tube length less than 80mm. Auto loading system is optional.



Machine Show

We adopt high rigid carbon square tube welding table, this structure can efficiently solve the issues of shaking and deformation during long time high speed working. It can support mass loading working materials more than 1000kgs. Through twice age process and annealing treatment, protect body will not deformation.


Cutting Sample Show
